*視不同工況,清洗泵有立式多級泵、單螺桿泵、離心泵供選擇;

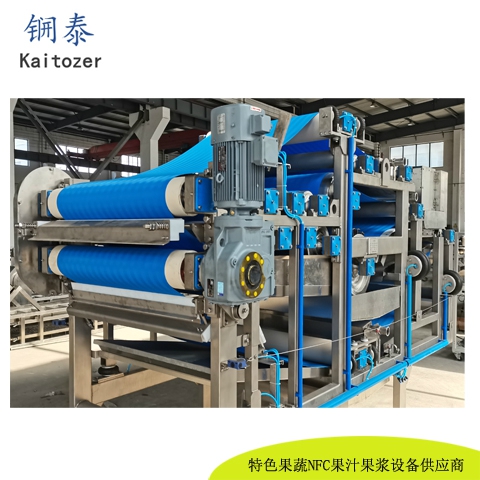

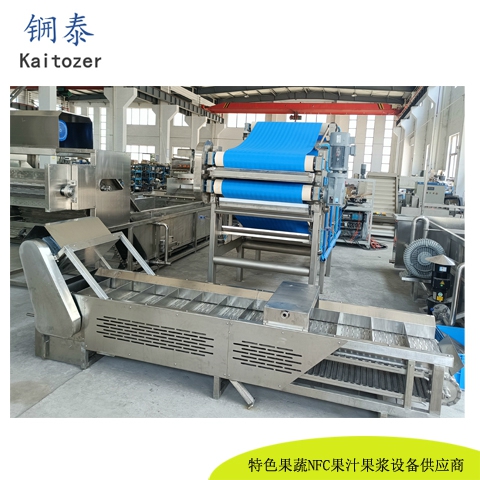

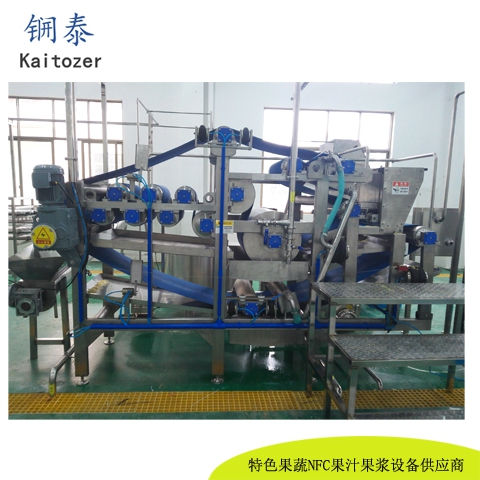

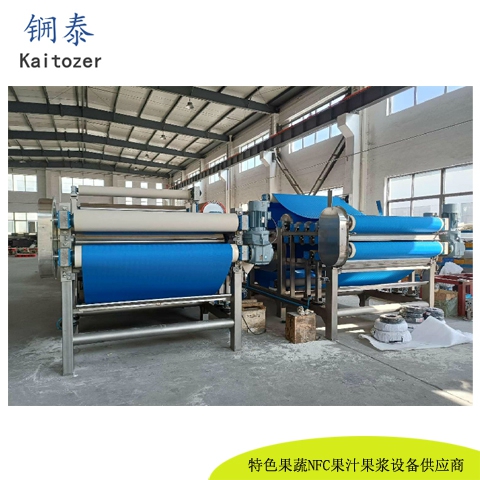

帶式榨汁機技術參數表 | |||||
型號 | KT06ZDS600 | KT06ZDS875 | KT06ZDS1200 | KT06ZDS1600 | KT06ZDS2500 |
產能(T/H) | 1-1.5 | 1.5-3 | 4-6 | 8-12 | 18-22 |
帶寬 | 600 | 875 | 1200 | 1600 | 2500 |
長度 | 7500 | 9200 | 11100 | 14500 | 17100 |
出汁率(以蘋果計) | ≥72% | ≥72% | ≥75% | ≥75% | ≥75% |
主電機功率(KW) | 1.5 | 2.2 | 3 | 4 | 5.5 |
布料電機功率(KW) | 0.25 | 0.25 | 0.37 | 0.55 | 0.55 |
壓榨輥數量 | 18 | 20 | 20 | 20 | 24 |
外形尺寸 | 2800x1080x1680 | 3200x1380x1860 | 3980x2100x2140 | 5520x2680x2580 | 5520x3400x2430 |
